Description

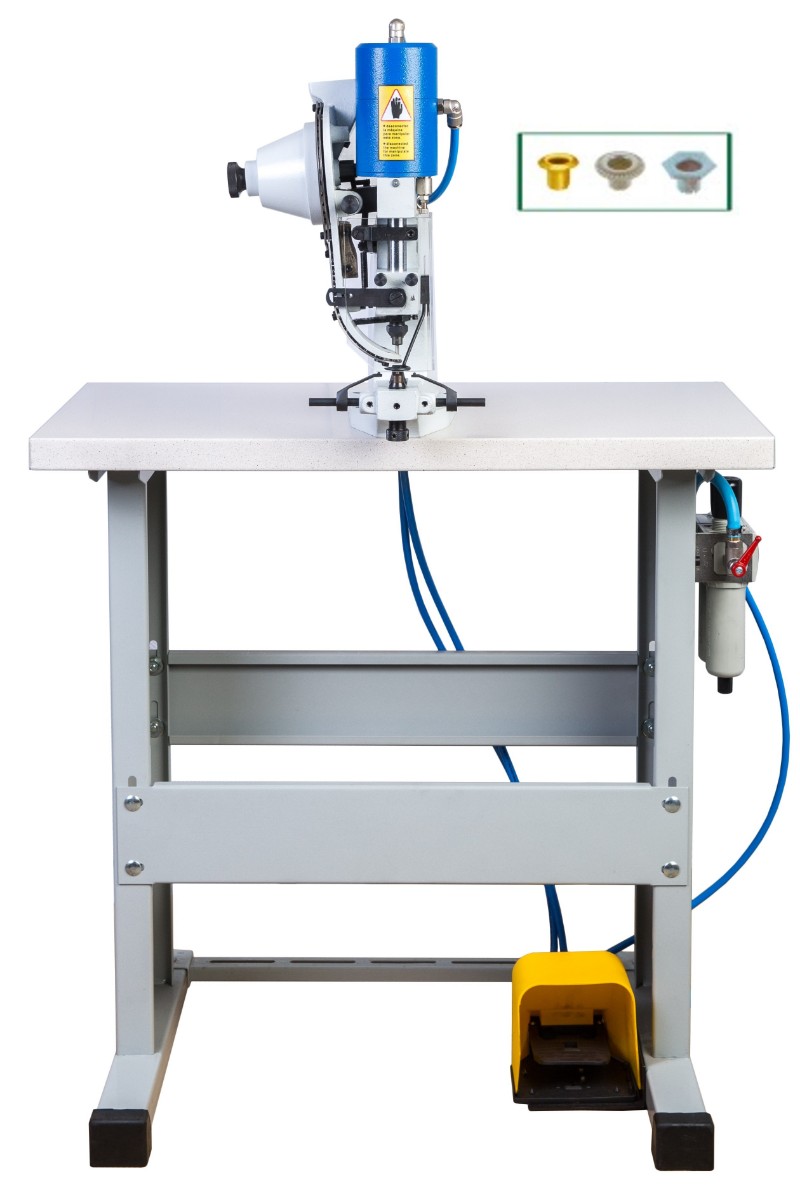

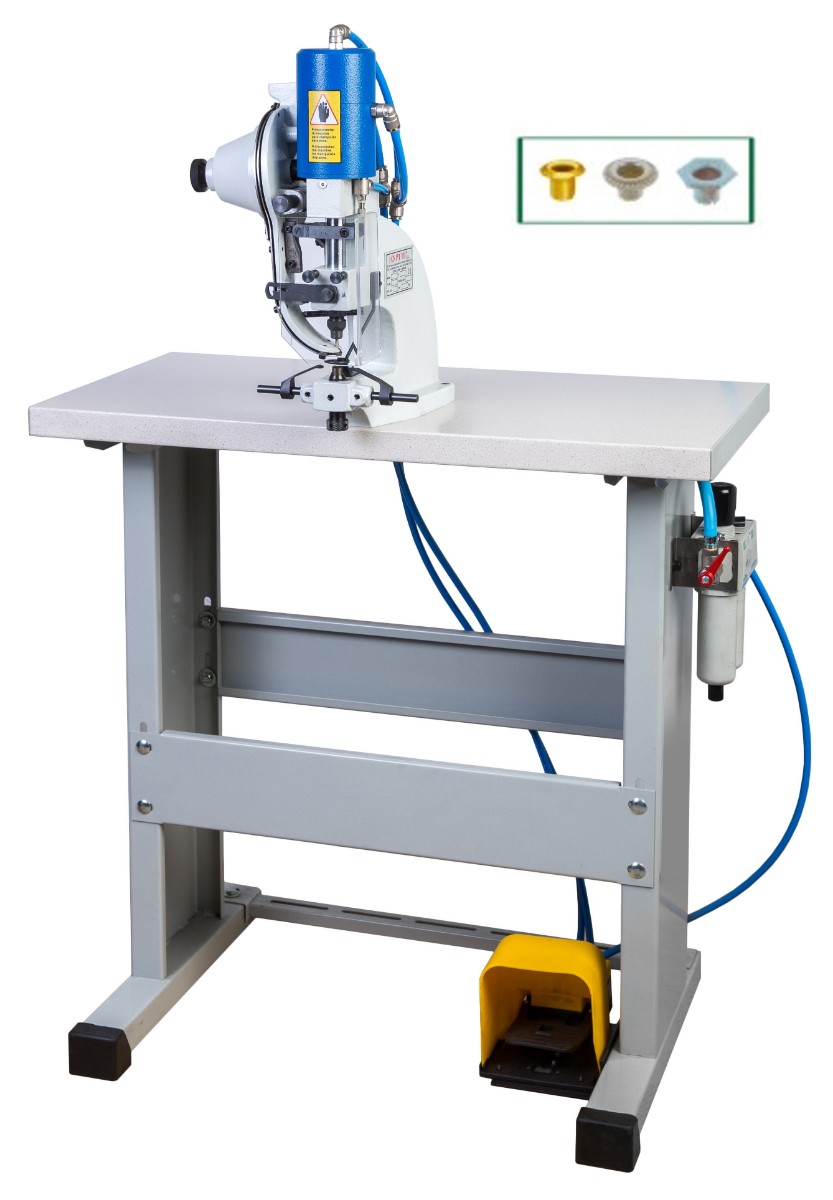

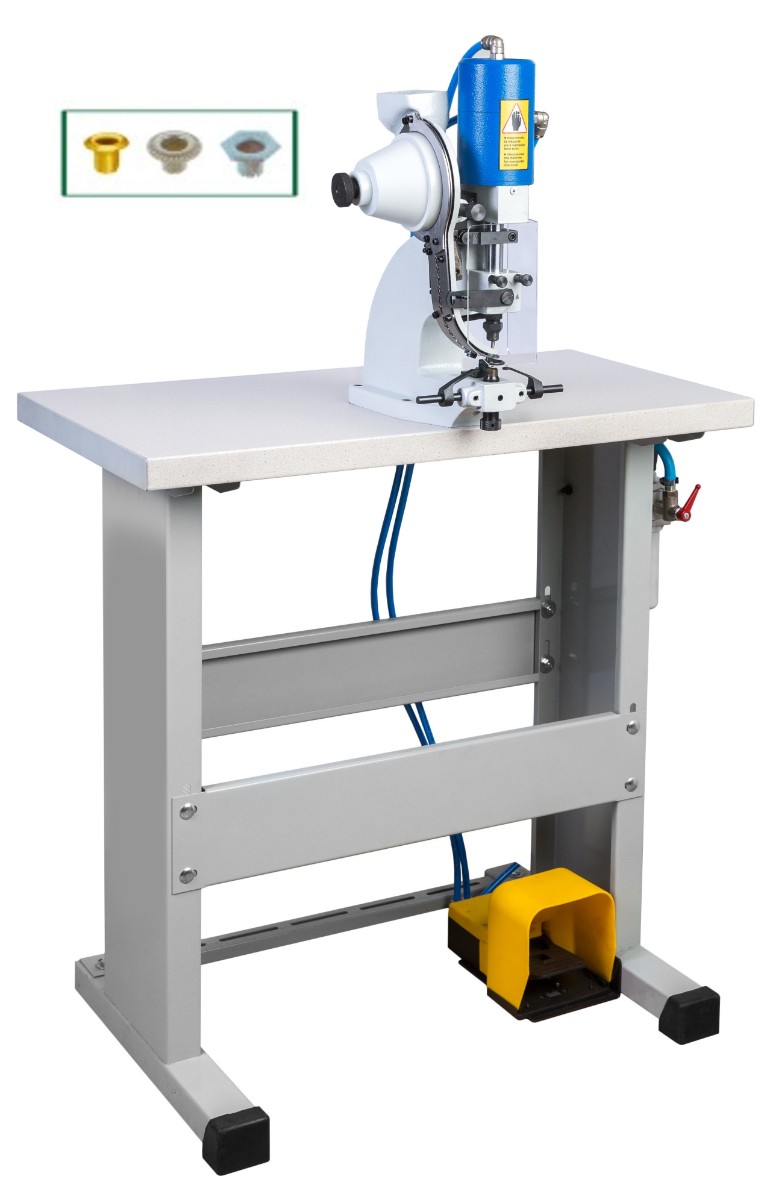

Designed for high volume constant use. This semi-automatic eyeleting machine feeds the eyelet to the setting dies via a hopper fed raceway and then in a single action punches out a hole in the material while simultaneously setting the eyelet without the operator having to handle the components.
Typical applications
- Footwear
- Packaging
- Print finishing
- Electronics
- Pneumatically powered
- Quiet operation
- Solid construction
- Sets eyelets in a variety of materials including plastic, card and leather
- Back and side stop for accurate placement of work.
- Optional laser positioning system available
- Foot pedal operation leaves both hands free.
- Large capacity component bowl
- By changing the dies, bowls and raceway, different sizes of eyelet can be used.
OPTIONAL: stainless tray with guides to adjust the distance between eyelets.OPTIONAL: stainless tray with guides to adjust the distance between eyelets.
| TECHNICAL DATA | |
| Model | EMJ231 |
| Height | 1330mm |
| Width | 800mm |
| Depth | 490mm |
| Weight | 57kgs |
| Power Supply | 6 bar |
| Max hole size of eyelet | 8mm |
| Setting per minute | 40 |
| Air Consumption | 2.1 Litres per stroke |
